Puracell® II P & PH

The Glasfloss Puracell® II P & PH 4” Plastic Frame Mini-Pleat Series is designed for use in applications where a high degree of efficiency is required in a 4″ deep filter. The Puracell® II P & PH Series combines state-of-the-art mini-pleat construction techniques with superior reliability to offer maximum value for commercial and industrial applications. Additionally, the Puracell® II P & PH Series offers unique advantages over the traditional 12″ rigid box filter including lower freight costs, reduced storage area requirements and less impact on landfills. The Glasfloss Puracell® II P & PH comes in a variety of standard sizes and efficiencies.

Product Specifications

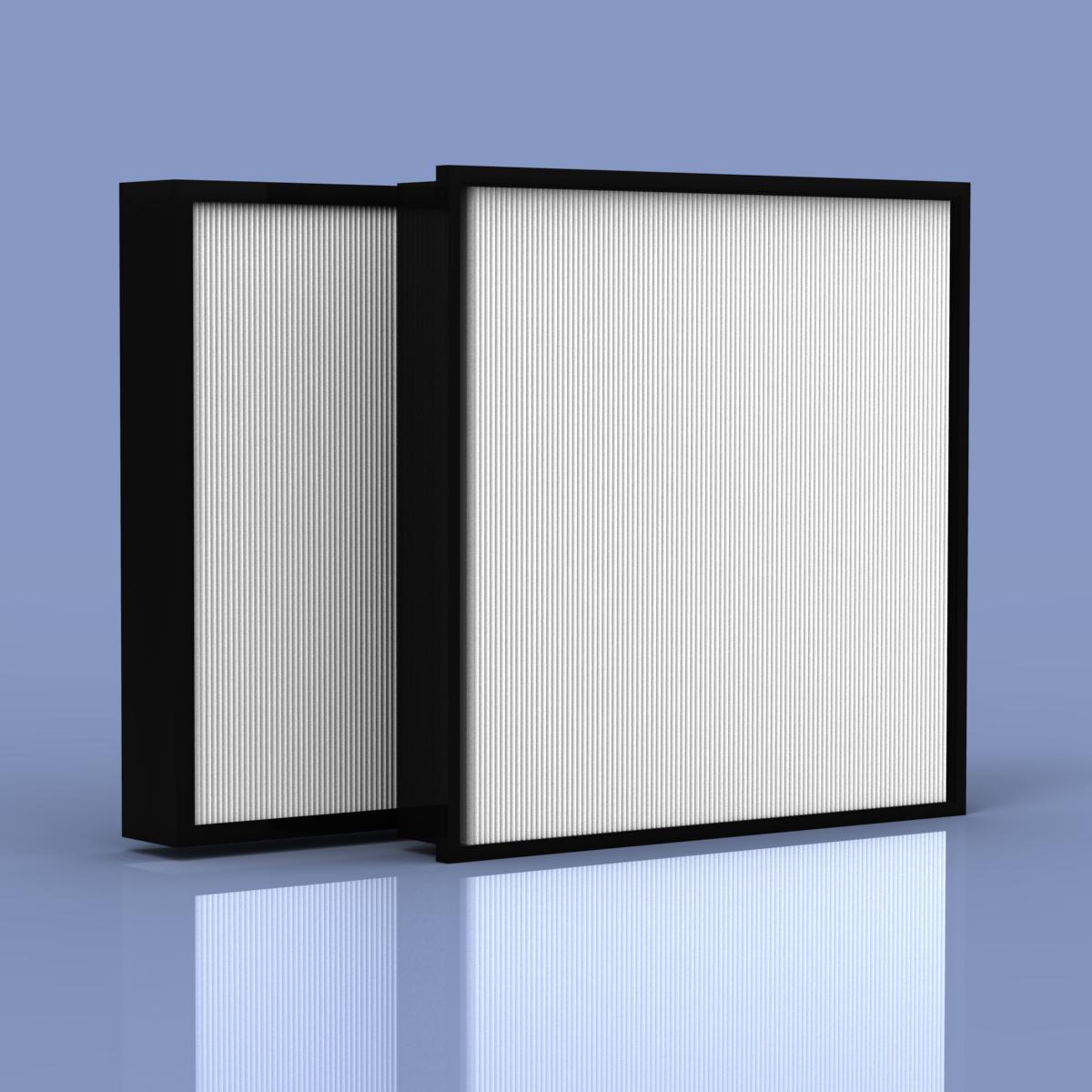

The Glasfloss Puracell® II P & PH filter is a mini-pleat cartridge encapsulated with a highimpact polystyrene plastic frame. An optional gasket can be applied to the filter frame. The Puracell® II P & PH pack is pleated, wetlaid micro fiber media. The pleats are separated and supported by a uniform glue bead that produces a low initial pressure drop while maximizing the filtration area. The media pack is resistant to moisture and does not support the growth of bacteria and mold. The media pack is thoroughly sealed to the inside of the plastic frame to prevent air bypass. The filter shall be rated to withstand temperatures up to 180 degrees Fahrenheit. The recommended final resistance for Puracell® II P & PH filters is 1.5″ w.g.
